USB 2.0 Plug Kit, Male, Straight Orientation, featuring 4 contacts and 4 positions. This free-hanging, cable-mount connector boasts gold-plated brass contacts with nickel plating (0.76um) for reliable connectivity. Designed for durability, it offers 50 mating cycles, a 30V voltage rating, and operates within a -40°C to 85°C temperature range. The shielded, black housing is UL94 V-0 flammability rated and IP67 compliant for waterproof and dust-tight performance.
Voltage Rating30V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 1954640-1 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Gold |
| Diameter | 31.5mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Mating Cycles | 50 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 30V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bag |
| Plating | Nickel |
| Plating Thickness | 0.76um |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1954640-1 Datasheet
Download the complete datasheet for TE Connectivity 1954640-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

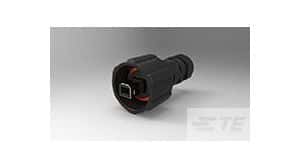

Product Images
