Modular jack, 8 positions, 0.635mm pitch, right angle SMD termination. Features 8 contacts with copper alloy, gold plated material. Rated for 30V, 500mA current, and operates between -40°C and 70°C. This shielded connector offers a single port with a black housing and UL94 V-0 flammability rating.
Voltage Rating30V
Current Rating500mA
Quick Jump:
Technical Specifications
TE Connectivity 1981080-1 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 14mm |
| Element Configuration | Single |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Keyed | No |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mode | Singlemode |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Positions Loaded | 8 |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Tray |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.6mm |
| Pitch | 0.635mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 1981080-1 Datasheet
Download the complete datasheet for TE Connectivity 1981080-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

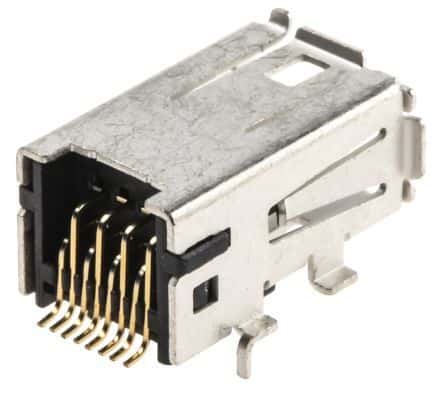

Product Images
