64-position, 4-row female rectangular connector with straight orientation. Features copper contacts rated for 10A and 250V, utilizing HTS HN.D contact type with crimp termination. Constructed from UL94 V-0 rated PC material in grey, this panel mount connector operates within a -40°C to 125°C temperature range. RoHS compliant and ELV compliant.
Voltage Rating250V
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 2-1103113-3 technical specifications.
General
| Color | Grey |
| Contact Material | Copper |
| Contact Type | HTS HN.D |
| Current Rating | 10A |
| Depth | 35mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Length | 110mm |
| Material | PC |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Contacts | 64 |
| Number of Positions | 64 |
| Number of Rows | 4 |
| Orientation | Straight |
| Package Quantity | 5 |
| Packaging | Loose Piece |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HTS HN.D.64 |
| Termination | Crimp |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 2-1103113-3 Datasheet
Download the complete datasheet for TE Connectivity 2-1103113-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

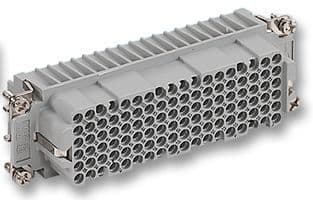

Product Images
