Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications

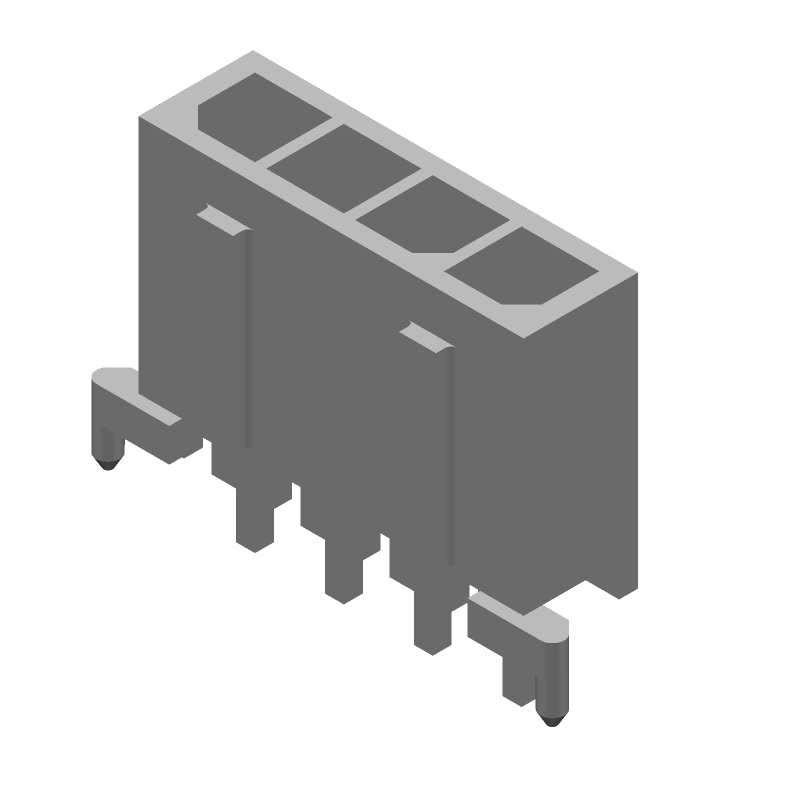

TE Connectivity 2-1445084-4 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Post Length | 3.18mm |
| Contact Type | Male Pin |
| Current Rating | 5A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Mating Retention | Yes (With) |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2128 |
| Packaging | Tray |
| PCB Mount Alignment | Yes (With) |
| Pitch | 3mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Micro MATE-N-LOK |
| Termination | Through Hole |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 2-1445084-4 Datasheet
Download the complete datasheet for TE Connectivity 2-1445084-4 to view detailed technical specifications.
No datasheet is available for this part.
