24-position, 2-row wire-to-board header with a 4.2mm pitch. Features male pin contacts with brass material and tin plating, rated for 9A and 600V AC. Through-hole mounting in a straight, vertical orientation with mating alignment and retention. UL94 V-2 flammability rating and lead-free construction.
Voltage Rating600V
Current Rating9A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 2-1586039-4 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Beige
Connector System
Wire-to-Board
Contact Current Rating
9A
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Retention
No (Without)
Contact Type
Male Pin
Current Rating
9A
Depth
9.75mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Male
Height
12.8mm
Housing Color
Natural
Insulation Diameter
0.122inch
Lead Free
Lead Free
Length
2.031inch
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Circuits
24
Number of Contacts
24
Number of Ports
1
Number of Positions
24
Number of Power Positions
24
Number of Rows
2
Orientation
Straight
Package Quantity
105
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
0.063mm
Pitch
4.2mm
Plating Thickness
80um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
4.2inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
VAL-U-LOK
Termination
Solder
Voltage Rating
600V
Width
0.386inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2-1586039-4 Datasheet
Download the complete datasheet for TE Connectivity 2-1586039-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

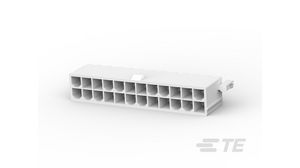

Product Images
