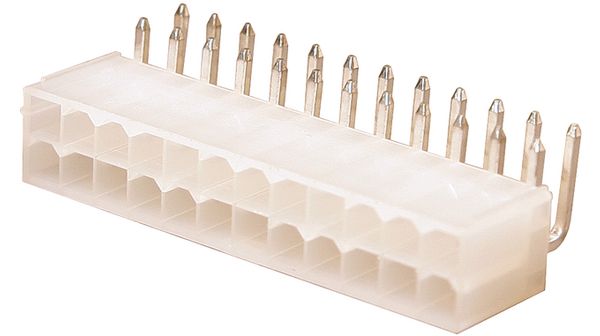

24-position, 2-row right-angle header for wire-to-board applications. Features a 4.2mm pitch and 9A contact current rating, with male pin contacts made of tin-plated brass. This beige, natural-colored housing is UL94 V-2 flammability rated and operates within a -40°C to 221°C temperature range. Designed for through-hole mounting with a 600V voltage rating.
Voltage Rating600V
Current Rating9A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 2-1586041-4 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Beige
Connector System
Wire-to-Board
Contact Current Rating
9A
Contact Gender
Female
Contact Material
Brass, Tin
Contact Plating
Tin
Contact Retention
No (Without)
Contact Style
Pin
Contact Type
Male Pin
Current Rating
9A
Depth
19.6mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Male
Height
0.39inch
Housing Color
Natural
Insulation Diameter
0.122inch
Lead Free
Lead Free
Length
2.031inch
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Circuits
24
Number of Contacts
24
Number of Positions
24
Number of Power Positions
24
Number of Rows
2
Operating Supply Voltage
600V
Orientation
Right Angle
Package Quantity
70
Packaging
Tray
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
PCB Thickness
0.063mm
Pitch
4.2mm
Plating
Tin
Plating Thickness
80um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
4.2inch
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
VAL-U-LOK
Termination
Solder
VDE Tested
No
Voltage Rating
600V
Width
13mm
Compliance
RoHS
Compliant
