4-position shrouded header with a 2mm pitch, designed for wire-to-board applications. Features male pin contacts with a 4A current rating and tin plating for reliable connectivity. Surface mountable with a straight orientation, this header offers a 125V voltage rating and operates within a -40°C to 105°C temperature range. Constructed with a black nylon housing and brass contacts, it meets UL94 V-0 flammability standards and is RoHS compliant.
Voltage Rating125V
Current Rating4A
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 2-292175-4 technical specifications.
General
| Approvals | CSA |
| Backwall/Post Interruptions | Yes (With) |
| Connector System | Wire-to-Board |
| Contact Current Rating | 4A |
| Contact Finish - Mating | TIN |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 0.177inch |
| Contact Plating | Tin |
| Contact Retention | Yes (With) |
| Contact Shape | Round |
| Contact Type | Male Pin |
| Current Rating | 4A |
| Depth | 5.8mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 7.8mm |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Diameter | 0.93mm |
| Insulation Material | Nylon |
| Length | 9.8mm |
| Mating Alignment | Yes (With) |
| Mating Retention | No (Without) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 700 |
| Packaging | Tape and Reel |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 0.8mm |
| Pitch | 2mm |
| Plating Thickness | 2um |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | CT |
| Shape | Rectangular |
| Strain Relief | No (Without) |
| Termination | SMD/SMT |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| Width | 5.8mm |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 2-292175-4 Datasheet
Download the complete datasheet for TE Connectivity 2-292175-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

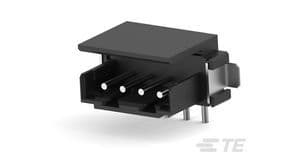

Product Images
