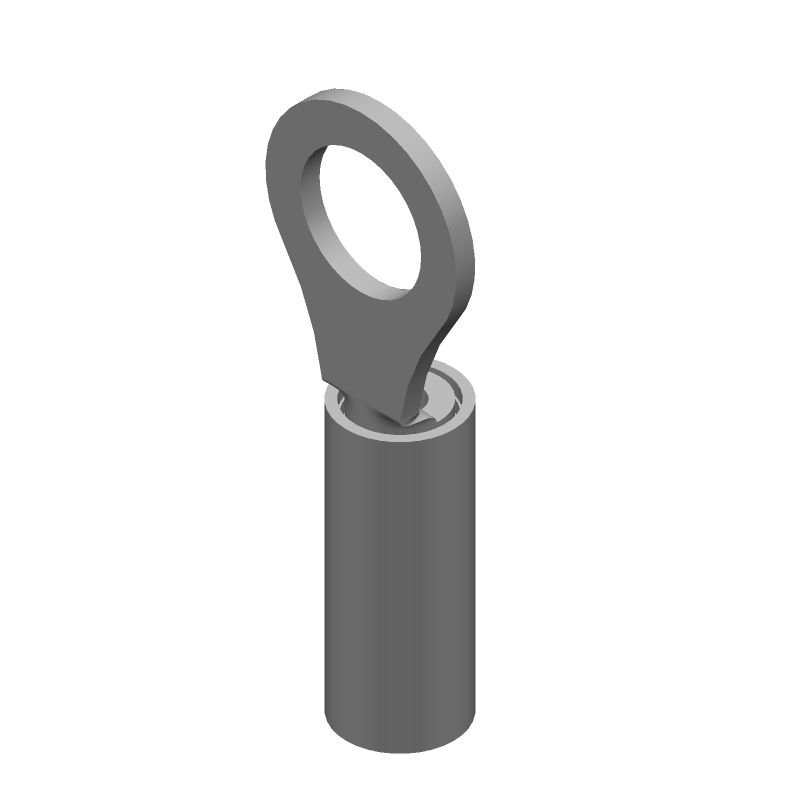

Ring tongue terminal featuring a copper contact material with tin plating, suitable for 18 AWG wire. This insulated terminal, with a nylon insulation material and a 2.79mm insulation diameter, offers a 300V AC/DC voltage rating. Designed for free-hanging mounting, it has a 5mm stud diameter and a 0.79mm tongue thickness. Packaged on tape and reel, this component is RoHS compliant and government qualified.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 2-36153-9 technical specifications.
General
| Color | White, Red |
| Contact Material | Copper |
| Contact Plating | Tin |
| ELV | Compliant |
| Gender | Female |
| Government Qualified | Yes |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Diameter | 2.79mm |
| Insulation Material | Nylon |
| Lead Free | Not Applicable |
| Length | 0.91inch |
| Material | Copper |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Plating Thickness | 2.54um |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | PIDG |
| Stud Diameter | 5mm |
| Termination | Circular |
| Thickness | 0.031inch |
| Tongue Thickness | 0.79mm |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Diameter | 0.11inch |
Compliance
| RoHS | Compliant |
