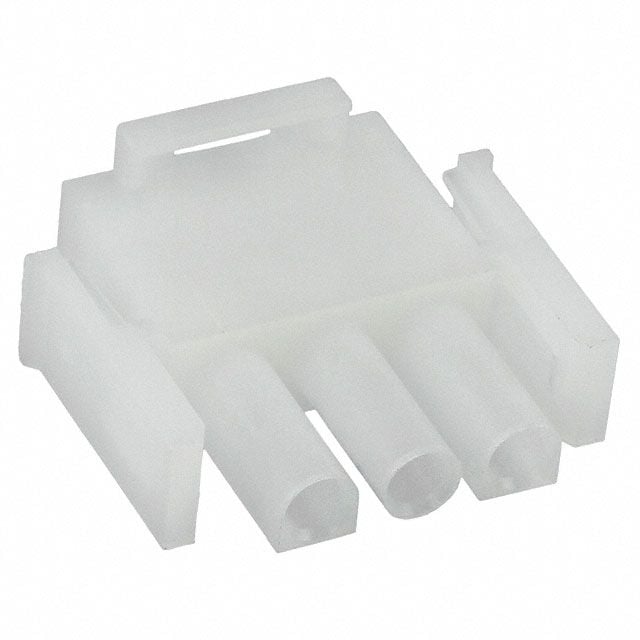

3-position, 1-row wire housing for crimp termination, featuring a straight, cable mount orientation with a 6.35mm pitch. This natural colored, free-hanging connector system supports wire-to-wire connections and offers a current rating of 19A with a maximum voltage rating of 600V AC. It operates within a temperature range of -67°C to 221°C and is UL94 V-2 flammability rated. Compliant with ELV and RoHS standards, this housing accepts male or female contacts and is CSA and VDE tested.
Voltage Rating600V
Current Rating19A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 2-480700-0 technical specifications.
General
| Approvals | CSA |
| Color | Natural |
| Connector System | Wire-to-Wire |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 19A |
| Depth | 27.43mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Housing Color | Natural |
| Lead Free | Not Applicable |
| Max Operating Temperature | 221°C |
| Min Operating Temperature | -67°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Panel Thickness | 0.09inch |
| Pitch | 6.35mm |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Gauge | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 2-480700-0 Datasheet
Download the complete datasheet for TE Connectivity 2-480700-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
