This surface mount receptacle is designed for power applications, featuring a straight, cable-to-board connector system. It offers a 7.5A contact current rating with gold-plated copper contacts. The component has a single position and a 1.65mm inside diameter, with a 30um plating thickness. Operating across a wide temperature range from -85°C to 257°C, it is RoHS compliant and suitable for discrete wire termination.
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 2-5050871-3 technical specifications.
General
| Circuit Application | Power |
| Connector System | Cable-to-Board |
| Contact Current Rating | 7.5A |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 3mm |
| ELV | Compliant |
| Gender | Receptacle |
| Inside Diameter | 1.65mm |
| Lead Free | Lead Free |
| Length | 7.32mm |
| Max Operating Temperature | 257°C |
| Min Operating Temperature | -85°C |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2000 |
| Packaging | Loose Piece |
| PCB Thickness | 3.18mm |
| Plating Thickness | 30um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | 5 |
| Termination | Press-Fit |
| Wire/Cable Gauge | 14AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 2-5050871-3 Datasheet
Download the complete datasheet for TE Connectivity 2-5050871-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

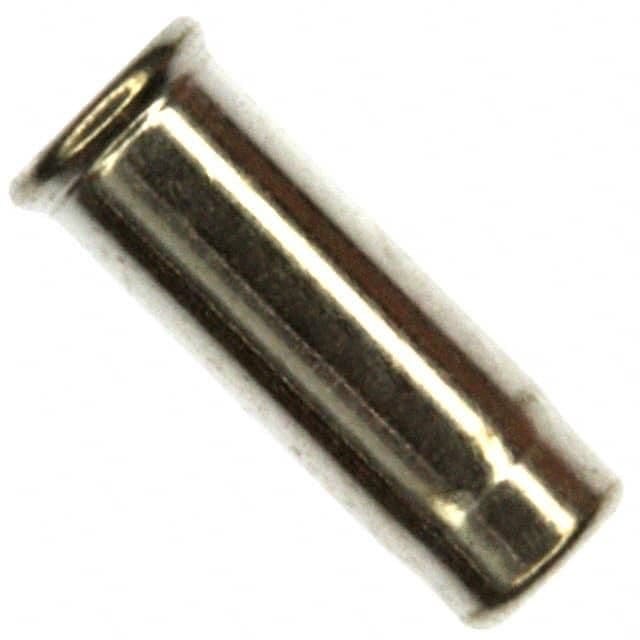

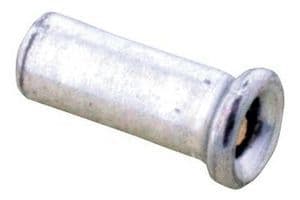

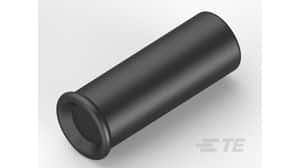

Product Images
