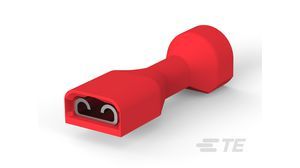

Female receptacle terminal with straight orientation, designed for discrete wire applications. Features brass body with tin plating and nylon insulation in red, accommodating wire gauges from 22 to 18 AWG. Offers insulated wire support and a mating tab width of 4.75mm, with a maximum operating temperature of 105°C. Compliant with RoHS and ELV standards, this component is supplied on tape and reel.
Storage0.02inch
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 2-520261-2 technical specifications.
General
Body Material
Brass
Body Plating
Tin
Color
Red, Clear
Contact Plating
Tin
Depth
8.53mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Female
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
5.84mm
Insulation Material
Nylon
Lead Free
Lead Free
Length
0.935inch
Material
Brass
Mating Tab Width
4.75mm
Max Operating Temperature
105°C
Mount
Free Hanging
Orientation
Straight
Package Quantity
2000
Packaging
Tape and Reel
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Ultra-Fast
Size
0.02inch
Terminal Material
Brass
Termination
Receptacle
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
22AWG
Wire/Cable Diameter
0.23inch
Wire/Cable Gauge
22AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2-520261-2 Datasheet
Download the complete datasheet for TE Connectivity 2-520261-2 to view detailed technical specifications.
