This insulated receptacle terminal features a brass body with tin plating, designed for discrete wire applications. It supports wire gauges from 22 to 18 AWG, accommodating a wire/cable diameter of 3.43mm. The nylon insulation, colored red, provides a 600V voltage rating and a flammability rating of UL94 V-2. With a mating tab width of 6.35mm and a length of 0.855 inches, this component is RoHS compliant and packaged on tape and reel.
Storage0.032inch
Voltage Rating600V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 2-520405-2 technical specifications.
General
Body Material
Brass
Body Plating
Tin
Color
Red
Contact Plating
Tin
Depth
10.38mm
Flammability Rating
UL94 V-2
Gender
Female
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
0.135inch
Insulation Material
Nylon
Length
0.855inch
Material
Brass
Mating Tab Width
6.35mm
Mount
Free Hanging
Package Quantity
2200
Packaging
Tape and Reel
Plating
Tin
Primary Type
RECEPTACLE
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Ultra-Fast Plus
Size
0.032inch
Terminal Material
Brass
Termination
Receptacle
Voltage Rating
600V
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
22AWG
Wire/Cable Diameter
3.43mm
Wire/Cable Gauge
22AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2-520405-2 Datasheet
Download the complete datasheet for TE Connectivity 2-520405-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

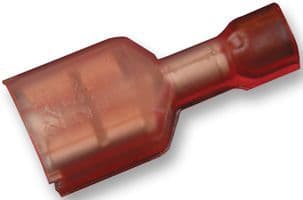

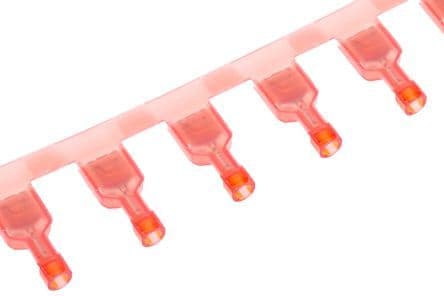

Product Images
