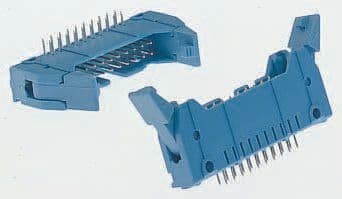

26 Position, 2.54mm pitch right-angle shrouded male header for wire-to-board applications. Features gold or gold-palladium plated bronze contacts with a 1A current rating and 2.79mm contact post length. Thermoplastic housing in blue, rated UL94 V-0, with a maximum operating temperature of 105°C. Includes mating alignment and mating connector lock for secure connections.
Voltage Rating250V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 2-5499141-6 technical specifications.
General
Board Standoff
No (Without)
Circuit Application
Signal
Color
Blue
Connector System
Wire-to-Board
Contact Current Rating
1A
Contact Finish - Mating
Gold or Gold-Palladium
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
0.24inch
Contact Plating
Gold, Tin
Contact Post Length
2.79mm
Contact Shape
Square
Contact Type
Male Pin
Current Rating
1A
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
13.94mm
Housing Color
Blue
Insulation Color
Blue
Lead Length
2.79mm
Length
52.32mm
Material
Thermoplastic
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
26
Number of Positions
26
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Right Angle
Package Quantity
24
Packaging
Tray
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
Pitch
2.54mm
Plating Thickness
0.76um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Series
AMP-LATCH
Shrouded
Yes (With)
Shrouded End Dimension
3.81mm
Termination
Through Hole
Voltage Rating
250V
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
