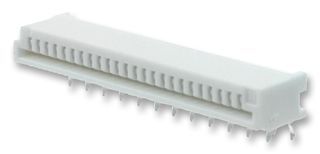

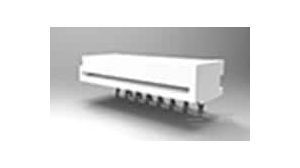

1.25mm FFC Header, 24 Pos, 1A, 50V, Right Angle, Through Hole

TE Connectivity

2-84533-4

Name: 2-84533-4 TE Connectivity
Brand: TE Connectivity
SKU: 2-84533-4

1.25mm FFC Header, 24 Pos, 1A, 50V, Right Angle, Through Hole

1.25mm pitch flex-to-board connector with 24 positions and 24 contacts. Features a right-angle, through-hole mounting orientation with a 4.8mm height and 8.8mm width. Offers 1A contact current rating and 50V voltage rating, with tin, bright plating on bronze contacts. Includes mating alignment and PCB mount retention, with a UL94 V-0 flammability rating.

Voltage Rating50V

Current Rating1A

MountingThrough Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

TE Connectivity 2-84533-4 technical specifications.

General

Connector System	Flex-to-Board
Contact Current Rating	1A
Contact Location	Top
Contact Material	Bronze
Contact Plating	Tin, Bright
Current Rating	1A
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	4.8mm
Housing Color	White
Length	1.3287inch
Mating Alignment	Yes (With)
Max Operating Temperature	176°C
Min Operating Temperature	-4°C
Mount	Through Hole
Number of Contacts	24
Number of Positions	24
Number of Rows	1
Orientation	Right Angle
Package Quantity	900
Packaging	Box
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1.6mm
Pitch	0.049inch
Plating Thickness	0.8um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Tail Length	3.2mm
Termination	Through Hole
Voltage Rating	50V
Width	8.8mm
Wire/Cable Type	Flat Flex
