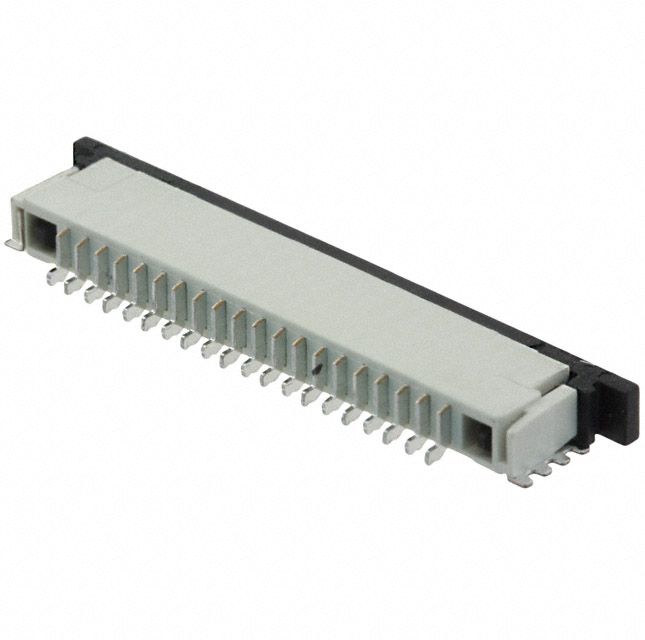

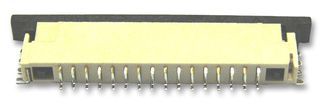

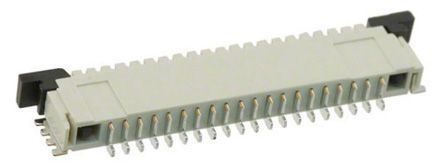

1mm FPC Header, 20 Pos, Female, Right Angle, SMD, 1A, 200V

TE Connectivity

2-84952-0

Name: 2-84952-0 TE Connectivity
Brand: TE Connectivity
SKU: 2-84952-0

1mm FPC Header, 20 Pos, Female, Right Angle, SMD, 1A, 200V

1mm pitch, right-angle flex-to-board header with 20 positions and 20 contacts. Features bottom contact location, bronze contacts with tin/bright plating, and a 1A current rating. Constructed with a natural thermoplastic housing and black nylon/glass/polyamide actuator, this surface mount connector offers 200V voltage rating and operates within a -40°C to 85°C temperature range. Compliant with RoHS and ELV standards, it is supplied in tape and reel packaging.

Voltage Rating200V

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 2-84952-0 technical specifications.

General

Actuator Color	Black
Actuator Material	Nylon, Glass, Polyamide
Body Plating	Tin
Color	Natural
Connector System	Flex-to-Board
Contact Current Rating	1A
Contact Location	Bottom
Contact Material	Bronze
Contact Plating	Tin, Bright
Depth	6.54mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	2.56mm
Housing Color	Natural
Lead Free	Lead Free
Lead Pitch	1mm
Length	27.92mm
Material	Thermoplastic
Mating Alignment	Yes (With)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	200V
Mount	Surface Mount
Number of Contacts	20
Number of Positions	20
Number of Rows	1
Orientation	Right Angle
Package Quantity	1200
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pin Diameter	0.2mm
Pitch	0.039inch
Plating Thickness	2um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	200V
Width	0.2575inch
Wire/Cable Type	Flat Flex
