1mm Flex-to-Board Header, 24 Pos, Right Angle, SMD, 1A, 200V

TE Connectivity

2-84953-4

Name: 2-84953-4 TE Connectivity
Brand: TE Connectivity
SKU: 2-84953-4

1mm Flex-to-Board Header, 24 Pos, Right Angle, SMD, 1A, 200V

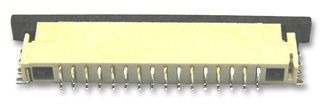

1mm pitch, right-angle, surface-mount female header assembly for flex-to-board connectivity. Features 24 positions with top contact location, bronze contacts plated with tin and bright tin, and a 1A current rating. Constructed from natural colored thermoplastic with a black nylon, glass, polyamide actuator, and a tin-plated body. Operates within a -40°C to 85°C temperature range, rated for 200V, and meets UL94 V-0 flammability standards. Shrouded design with PCB mount retention, suitable for flat flex wire/cable types.

Voltage Rating200V

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 2-84953-4 technical specifications.

General

Actuator Color	Black
Actuator Material	Nylon, Glass, Polyamide
Body Plating	Tin
Color	Natural
Connector System	Flex-to-Board
Contact Current Rating	1A
Contact Location	Top
Contact Material	Bronze
Contact Plating	Tin, Bright
Depth	2.56mm
Flammability Rating	UL94 V-0
Gender	Female
Height	2.56mm
Housing Color	Natural
Lead Pitch	1mm
Length	31.92mm
Material	Thermoplastic
Mating Alignment	Yes (With)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Contacts	24
Number of Positions	24
Number of Rows	1
Orientation	Right Angle
Package Quantity	1200
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pin Diameter	0.2mm
Pitch	0.039inch
Plating Thickness	2um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	200V
Width	0.2575inch
Wire/Cable Type	Flat Flex
