Power terminal, male, straight orientation, designed for cable mounting. Features a 2.8x0.8mm mating tab with tin plating on a copper alloy contact material. Rated for 30A with a maximum operating temperature of 130°C and a minimum of -40°C. Compliant with VDE and IEC approvals, RoHS, and ELV standards. Termination is crimp, suitable for wire gauges 17-20 AWG.
Current Rating30A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 2-962915-1 technical specifications.
General
| Approvals | VDE, IEC |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper, Ferrite |
| Contact Plating | Tin |
| Contact Type | Power |
| Current Rating | 30A |
| Depth | 4.5mm |
| ELV | Compliant |
| Gender | Male |
| Height | 4.1mm |
| Insulation Diameter | 0.134inch |
| Lead Free | Not Applicable |
| Length | 27.4mm |
| Mating Tab Width | 0.11inch |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | Junior Power Timer |
| Shielding | Unshielded |
| Tab Thickness | 800um |
| Termination | Crimp |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 17AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 2-962915-1 Datasheet
Download the complete datasheet for TE Connectivity 2-962915-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

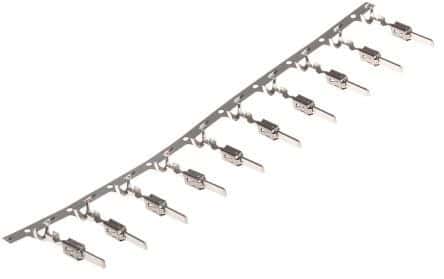

Product Images
