Signal and power crimp contact for cable mounting, designed for discrete wire with a 17-20AWG range. Features a tin-plated copper alloy construction for reliable conductivity, supporting a 30A current rating. Operates within a temperature range of -40°C to 130°C, with a straight orientation and 27.3mm length. This RoHS compliant component is supplied in loose piece packaging.
Current Rating30A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 2-963745-1 technical specifications.
General
| Approvals | VDE, IEC |
| Contact Material | Tin, Copper Alloy, Copper, Ferrite |
| Contact Plating | Tin |
| Current Rating | 30A |
| ELV | Compliant |
| Insulation Diameter | -2.1mm |
| Lead Free | Not Applicable |
| Length | 27.3mm |
| Max Operating Temperature | -130°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Plating Thickness | 1um |
| RoHS Compliant | Yes |
| Series | Junior Power Timer |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 17AWG |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 2-963745-1 Datasheet
Download the complete datasheet for TE Connectivity 2-963745-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

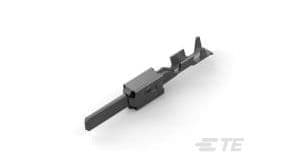

Product Images
