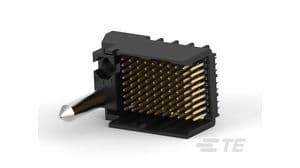

2007777-1

Board-to-board header with 90 positions, 10 columns, and 9 rows, featuring a 0.075-inch pitch and 1.35mm row spacing. This straight, male connector offers a 750mA contact current rating and supports 25Gbps data rates with differential signaling. Constructed with copper alloy contacts plated in gold, tin, and matte finishes over a nickel underplate, it utilizes a press-fit termination style. The black, UL94 V-0 rated housing provides vertical PCB mounting with retention and a 0.969-inch height.
