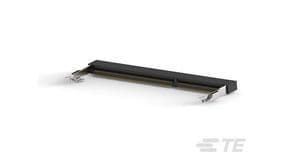

204 Pos DDR3 SO DIMM Socket, RA SMD, 0.6mm Pitch, 185°C

TE Connectivity

2013022-1

Name: 2013022-1 TE Connectivity
Brand: TE Connectivity
SKU: 2013022-1

204 Pos DDR3 SO DIMM Socket, RA SMD, 0.6mm Pitch, 185°C

204-position, right-angle Surface Mount DDR3 SDRAM socket with a 0.6mm pitch. Features a thermoplastic body and copper alloy contacts with gold plating, rated for 500mA. Designed for power circuit applications, this connector system offers a stack height of 0.157 inches and operates within a temperature range of -67°C to 185°C. The socket is UL94 V-0 flammability rated and supplied in tray packaging.

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 2013022-1 technical specifications.

General

Body Material	Thermoplastic
Circuit Application	Power
Connector System	Cable-to-Board
Contact Current Rating	500mA
Contact Material	Copper Alloy
Contact Plating	Gold
Depth	26mm
Flammability Rating	UL94 V-0
Height	4mm
Housing Color	Black
Insulation Material	Thermoplastic
Length	71.5mm
Max Operating Temperature	185°C
Memory Type	SDRAM, DDR3 SDRAM,
Min Operating Temperature	-67°C
Mount	Surface Mount
Number of Contacts	204
Number of Positions	204
Number of Rows	2
Orientation	Right Angle
Package Quantity	20
Packaging	Tray
PCB Mount Retention	With
Pitch	0.024inch
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.322inch
Sealable	No (Without)
Stack Height	0.157inch
Termination	SMD/SMT
