204-position SO DIMM socket for SDRAM and DDR3 SDRAM, featuring a 0.6mm pitch and straight, solder termination. This female, surface-mount connector system is designed for cable-to-board applications with a 1.5V voltage rating and 500mA contact current rating. Constructed with a black thermoplastic housing and copper alloy contacts plated in gold, it operates within a temperature range of -67°C to 185°C and meets UL94 V-0 flammability standards.
Voltage Rating1.5V
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 2013310-1 technical specifications.
General
Circuit Application
Power
Connector System
Cable-to-Board
Contact Current Rating
500mA
Contact Material
Copper Alloy
Contact Plating
Gold
Depth
26.5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
76.1mm
Max Operating Temperature
185°C
Memory Type
SDRAM, DDR3 SDRAM,
Min Operating Temperature
-67°C
Mount
Surface Mount
Number of Contacts
204
Number of Positions
204
Number of Rows
2
Orientation
Straight
Package Quantity
20
Packaging
Tray
PCB Mount Retention
With
Pitch
0.6mm
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.322inch
Sealable
No (Without)
Stack Height
0.362inch
Termination
Solder
Voltage Rating
1.5V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 2013310-1 Datasheet
Download the complete datasheet for TE Connectivity 2013310-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

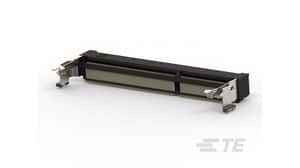

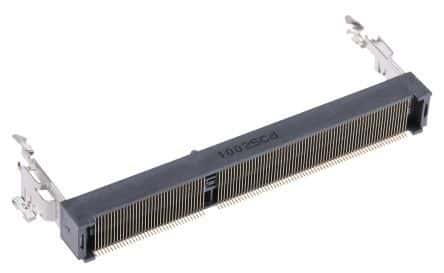

Product Images
