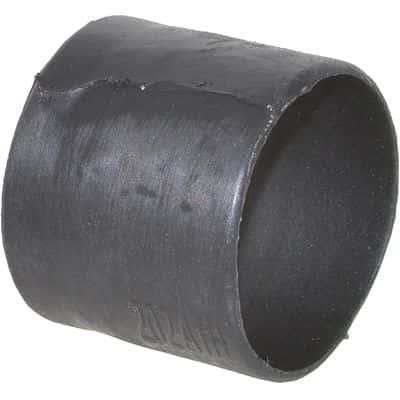

Fluid-resistant, thin-wall heat shrink molded boot designed for wire and cable protection. Constructed from modified elastomer, it operates effectively between -55°C and 105°C. This black, RoHS compliant component features a 11.9mm wire/cable diameter accommodation and a 25.4mm length.
PackageMolded
Quick Jump:
Technical Specifications
TE Connectivity 202A111-25/86-0 technical specifications.
General
| Body Material | Fluid Resistant Elastomer |
| Package/Case | Molded |
| Color | Black |
| ELV | Compliant |
| Government Qualified | No |
| Lead Free | Not Applicable |
| Length | 25.4mm |
| Material | Modified Elastomer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | Thermofit 202A1 |
| Wire/Cable Diameter | 11.9mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 202A111-25/86-0 Datasheet
Download the complete datasheet for TE Connectivity 202A111-25/86-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
