High-density D-Subminiature connector featuring 78 signal contacts and 4 rows. This male connector offers straight orientation with a panel mount and free-hanging capability. It utilizes gold-plated copper alloy contacts for reliable signal transmission and a metal shell for durability. The component has a straight termination type with a crimp style.
PackageMetal
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
TE Connectivity 204509-1 technical specifications.
General
| Body Material | Metal |
| Package/Case | Metal |
| Color | Black |
| Contact Plating | Gold |
| Contact Type | Signal |
| Depth | 15.37mm |
| Dielectric Material | Polyphenylene |
| ELV | Non-Compliant |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 66.93mm |
| Mount | Free Hanging, Panel |
| Number of Contacts | 78 |
| Number of Ports | 1 |
| Number of Positions | 78 |
| Number of Rows | 4 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Plating | Cadmium |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | Military, MIL-DTL-24308, AMPLIMITE 90 |
| Shell Material | Steel |
| Shell Size | 5 |
| Termination | Crimp |
| Width | 0.375inch |
Compliance
| RoHS | Not CompliantNo |
Datasheet
TE Connectivity 204509-1 Datasheet
Download the complete datasheet for TE Connectivity 204509-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

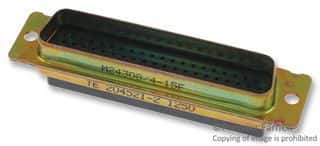

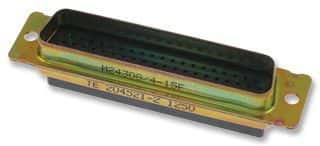

Product Images
