9-position, 2-row D-Subminiature connector for signal applications. Features straight, cable mount orientation with a female gender and shielded, steel shell. Rated for 250V AC/DC, with a maximum current of 3.7A. Crimp termination supports wire gauges from 18AWG to 28AWG. Dielectric material is Nylon, with Tin plating on contacts. Operating temperature range is -55°C to 105°C.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 205203-3 technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Steel |
| Circuit Application | Signal |
| Color | Black |
| Contact Type | Signal |
| Depth | 17.9mm |
| Dielectric Material | Nylon |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 12.55mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 30.81mm |
| Material | Metal |
| Mating Connector Lock | Yes (With) |
| Max Current Rating | 3.7A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 800 |
| Packaging | Box |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | AMPLIMITE HDP-20 |
| Shell Material | Steel |
| Shell Size | 1 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 12.55mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 18AWG |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 205203-3 Datasheet
Download the complete datasheet for TE Connectivity 205203-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

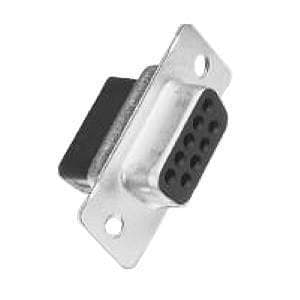

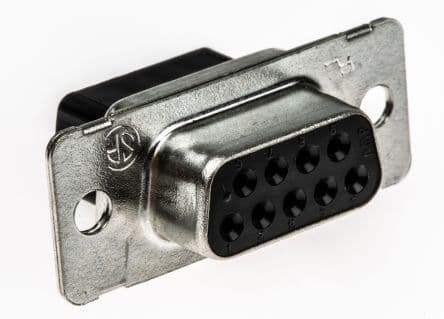

Product Images
