37-position, 2-row male D-subminiature connector with straight, shielded, cable mount orientation. Features tin-plated signal contacts, a metal shell, and a black nylon dielectric. Rated for 250V AC, operating temperature range of -55°C to 105°C, and accommodates wire gauges from 18AWG to 28AWG. UL and CSA approved, with UL94 V-0 flammability rating.
PackageMetal
MountingFree Hanging, Board
Quick Jump:
Technical Specifications
TE Connectivity 205210-3 technical specifications.
General
Approvals
UL, CSA
Body Material
Metal
Body/Shell Style
PLUG
Package/Case
Metal
Color
Black
Contact Gender
Male
Contact Plating
Tin
Contact Type
Signal
Depth
17.8mm
Dielectric Material
Nylon
DIN Conformance
No
Empty Shell
No
Filter Feature
No
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
IEC Conformance
No
Length
69.31mm
Manufacturer Series
205210
Material
Metal
Mating Connector Lock
Yes (With)
Mating Information
MULTIPLE MATING PARTS AVAILABLE
Max Operating Temperature
105°C
Max Voltage Rating (AC)
250V
MIL Conformance
No
Min Operating Temperature
-55°C
Mixed Contacts
No
Mount
Free Hanging, Board
Number of Contacts
37
Number of Positions
37
Number of Rows
2
Option
General Purpose
Orientation
Straight
Package Quantity
250
Packaging
Box
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMPLIMITE HDP-20
Shell Material
Steel
Shell Size
C
Shielding
Shielded
Termination
Crimp
Voltage Rating (AC)
250V
Width
12.54mm
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
18AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 205210-3 Datasheet
Download the complete datasheet for TE Connectivity 205210-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

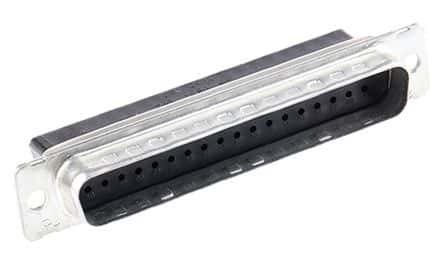

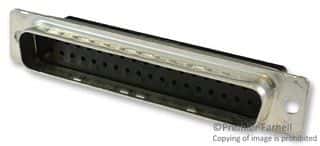

Product Images
