205734-7

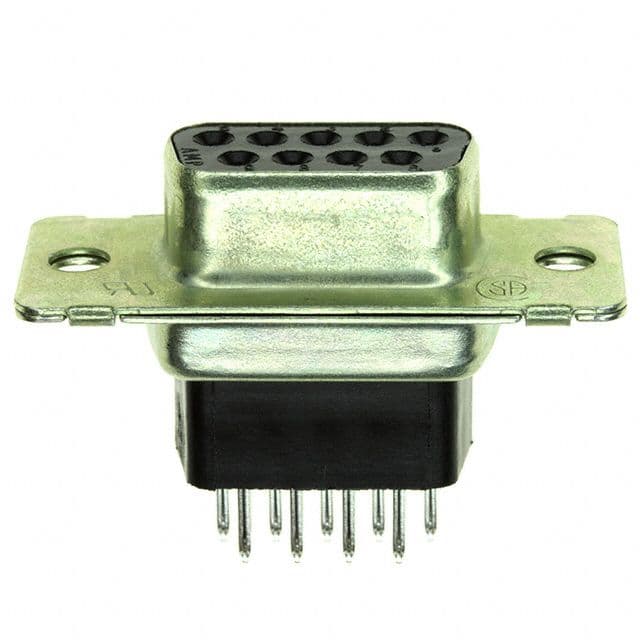

9-Pos Female D-Sub Connector, Shielded, Solder, Through Hole, Metal

9-position, 2-row female D-subminiature connector with straight, vertical PCB mounting orientation. Features gold-plated bronze signal contacts with square shape and 4.78mm post length, terminated via solder. Metal body and shell construction with black housing, offering shielded performance and a 125V voltage rating. Operating temperature range from -55°C to 105°C, with a maximum supply voltage of 250V AC/DC.

PackageMetal

Voltage Rating125V

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 205734-7 technical specifications.

General

Approvals	UL
Body Material	Metal
Package/Case	Metal
Color	Black
Contact Material	Bronze
Contact Plating	Gold, Tin, Lead
Contact Post Length	4.78mm
Contact Shape	Square
Contact Type	Signal
Depth	12.93mm
Dielectric Material	Nylon
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Black
Lead Free	Contains Lead
Length	31.19mm
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Supply Voltage (DC)	250V
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	250.25kV
Mount	Through Hole
Number of Contacts	9
Number of Ports	1
Number of Positions	9
Number of Rows	2
Orientation	Straight
Package Quantity	17
Packaging	Rail/Tube
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	2.36mm
Pitch	0.108inch
Plating	Zinc
Preloaded	Yes
Radiation Hardening	No
RoHS Compliant	No
Sealable	No (Without)
Series	AMPLIMITE HDP-20
Shell Material	Steel
Shell Size	1
Shielding	Shielded
Termination	Solder
Voltage Rating	125V
