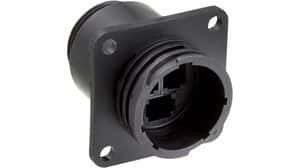

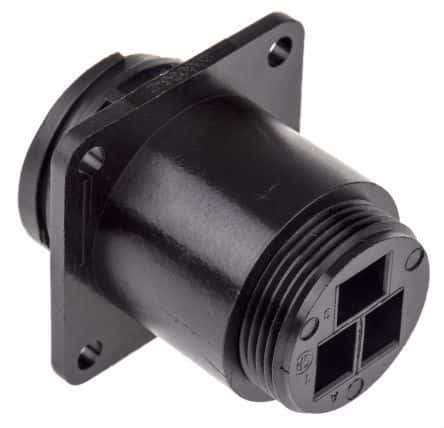

Circular connector receptacle, size 17, featuring 3 male pin contacts with silver-plated copper alloy construction. This straight, panel-mount component offers a 600V operating supply voltage and 250V DC rated voltage, with crimp termination. The black thermoplastic housing, reinforced with glass and polyamide, provides UL94 V-0 flammability rating and is RoHS compliant.
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 206036-2 technical specifications.
General
Body Material
Thermoplastic, Nylon, Glass, Polyamide
Color
Black
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Silver
Contact Protection
Yes (With)
Contact Shape
Rectangular
Contact Style
Pin
Contact Type
CRIMP
Depth
36.45mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Black
Insulation Diameter
0.22inch
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
41.53mm
Material
Plastic
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Mount
Panel
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Number of Power Positions
3
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CPC Series 3
Shell Material
Nylon
Shell Size
17
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
DC Rated Voltage
250V
Compliance
RoHS
Compliant
