Circular plug assembly, wire-to-wire connector system featuring 14 male crimp pin contacts. This straight, free-hanging connector has a black thermoplastic body and housing, with a shell size of 17 and a diameter of 34.26mm. Operating across a temperature range of -55°C to 105°C, it offers mating alignment and retention, with a 600V voltage rating and IP65 sealing.
Voltage Rating600V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 206044-1 technical specifications.
General
Body Material
Thermoplastic
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Protection
Yes (With)
Contact Shape
Circular
Contact Style
Pin
Contact Type
CRIMP
Diameter
34.26mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
34.67mm
Material
Plastic
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Contacts
14
Number of Ports
1
Number of Positions
14
Number of Signal Positions
14
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
100
Packaging
Bag
Plating
Thermoplastic
Radiation Hardening
No
Ratings
IP65
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CPC Series 1
Shell Material
Nylon
Shell Size
17
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
Voltage Rating
600V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 206044-1 Datasheet
Download the complete datasheet for TE Connectivity 206044-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

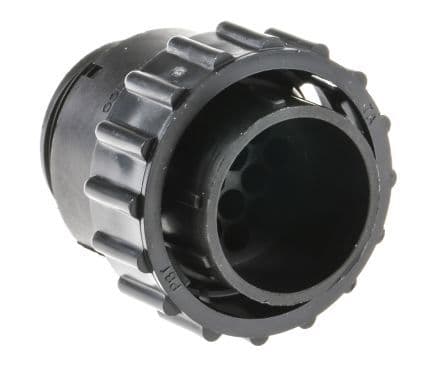

Product Images
