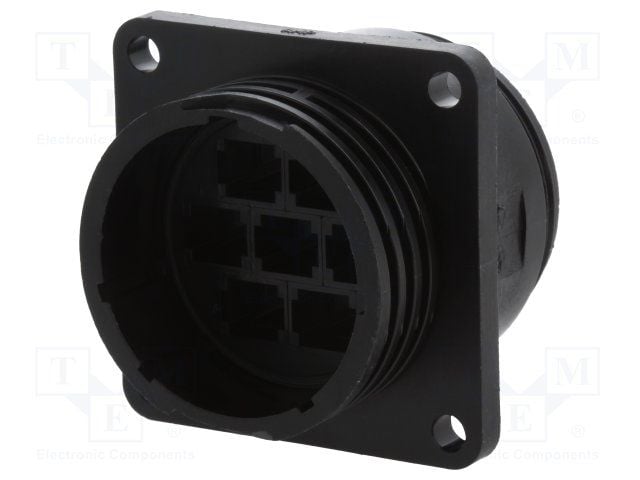

7-position, male receptacle circular connector with straight orientation. Features a black thermoplastic, nylon, glass, polyamide body and black housing. Utilizes copper pin contacts with crimp termination and a 0.22-inch insulation diameter. Rated for 600V operating supply voltage and 250V DC rated voltage, with UL94 V-0 flammability. Panel mount design includes mating alignment and retention.
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 206137-1 technical specifications.
General
Body Material
Thermoplastic, Nylon, Glass, Polyamide
Color
Black
Contact Gender
Male
Contact Material
Copper
Contact Protection
Yes (With)
Contact Style
Pin
Contact Type
CRIMP
Depth
44.45mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Black
Insulation Diameter
0.22inch
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
40.64mm
Material
Plastic
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Mount
Panel
Number of Contacts
7
Number of Ports
1
Number of Positions
7
Number of Power Positions
7
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Plating
Thermoplastic
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CPC Series 3
Shell Size
23
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 206137-1 Datasheet
Download the complete datasheet for TE Connectivity 206137-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

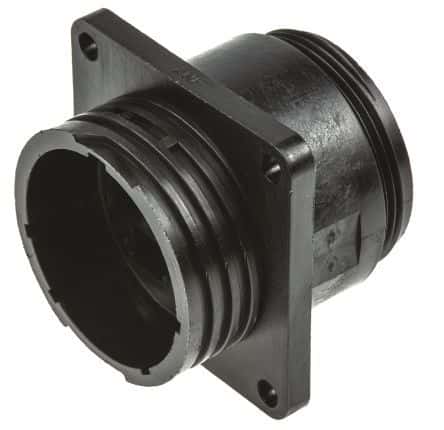

Product Images
