3-position, female receptacle circular connector with straight orientation. Features a black thermoplastic, nylon, glass, polyamide body and housing, with copper contacts. Rated for 600V operating supply voltage and UL94 V-0 flammability. Crimp termination type, with mating alignment and retention.
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 206425-1 technical specifications.
General
Body Material
Thermoplastic, Nylon, Glass, Polyamide
Color
Black
Contact Gender
Female
Contact Material
Copper
Contact Protection
Yes (With)
Contact Shape
Rectangular
Contact Type
CRIMP
Depth
41.53mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Black
Insulation Diameter
0.22inch
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
36.45mm
Material
Plastic
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Mount
Panel
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Number of Power Positions
3
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Plating
Thermoplastic
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CPC Series 3
Shell Material
Nylon
Shell Size
17
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 206425-1 Datasheet
Download the complete datasheet for TE Connectivity 206425-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

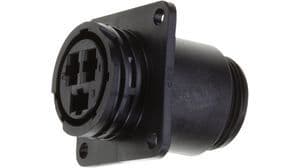

Product Images
