Circular receptacle assembly with 57 female crimp contacts, designed for panel mounting. Features a straight orientation, thermoplastic body and shell in black, and a shell size of 23. Offers mating alignment and retention, with a maximum operating supply voltage of 600V. Compliant with RoHS and ELV standards, this component has a UL94 V-0 flammability rating.
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 206438-1 technical specifications.
General
| Body Material | Thermoplastic |
| Color | Black |
| Contact Gender | Female |
| Contact Protection | Yes (With) |
| Contact Shape | Circular |
| Contact Type | CRIMP |
| Depth | 44.45mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 44.45mm |
| Housing Color | Black |
| Insulation Diameter | 0.068inch |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Length | 23.47mm |
| Material | Plastic |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Mount | Panel |
| Number of Contacts | 57 |
| Number of Ports | 1 |
| Number of Positions | 57 |
| Number of Signal Positions | 57 |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Plating | Thermoplastic |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | CPC Series 2 |
| Shell Material | Thermoplastic |
| Shell Size | 23 |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Crimp |
| VDE Tested | No |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 206438-1 Datasheet
Download the complete datasheet for TE Connectivity 206438-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

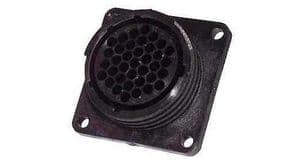

Product Images
