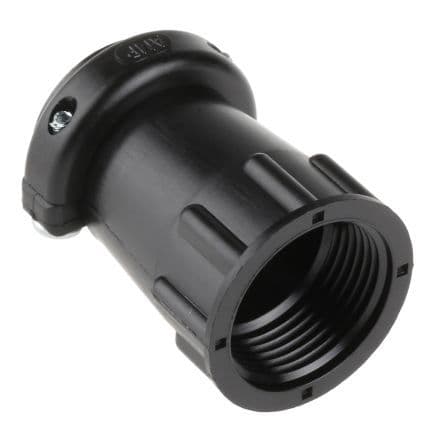

Straight, black thermoplastic cable shell clamp for size 13 CPC series connectors. Features a 24.13mm diameter and 34.3mm length, with a UL94 V-0 flammability rating. Designed for wire/cable diameters up to 0.453 inches. RoHS compliant.
Quick Jump:
Technical Specifications
TE Connectivity 206966-7 technical specifications.
General
| Color | Black |
| Diameter | 24.13mm |
| Flammability Rating | UL94 V-0 |
| Length | 34.3mm |
| Material | Thermoplastic |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CPC |
| Shell Material | Thermoplastic |
| Shell Size | 13 |
| Width | 24.13mm |
| Wire/Cable Color | Black |
| Wire/Cable Diameter | 0.453inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 206966-7 Datasheet
Download the complete datasheet for TE Connectivity 206966-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
