36-position, 9-row rectangular receptacle connector with a 5mm pitch and 5mm row spacing. Features male pin contacts made of gold-plated copper, rated for 13A current and 600V AC operating voltage. Straight orientation, free-hanging or panel mountable with a 2.29mm panel thickness. Constructed from red thermoplastic with a UL94 V-0 flammability rating, operating between -55°C and 130°C. Crimp termination for discrete wire/cable types.
Current Rating13A
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
TE Connectivity 207020-1 technical specifications.
General
| Approvals | UL |
| Color | Red |
| Connector System | Wire-to-Wire |
| Contact Material | Copper, Gold |
| Contact Style | Pin |
| Contact Type | Male Pin |
| Current Rating | 13A |
| Depth | 33.02mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Red |
| Lead Free | Lead Free |
| Length | 27.84mm |
| Material | Thermoplastic |
| Max Current Rating | 14A |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging, Panel |
| Number of Contacts | 36 |
| Number of Positions | 36 |
| Number of Rows | 9 |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Panel Thickness | 2.29mm |
| Pitch | 5mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 5mm |
| Series | Metrimate |
| Termination | Crimp |
| VDE Tested | Yes |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 207020-1 Datasheet
Download the complete datasheet for TE Connectivity 207020-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

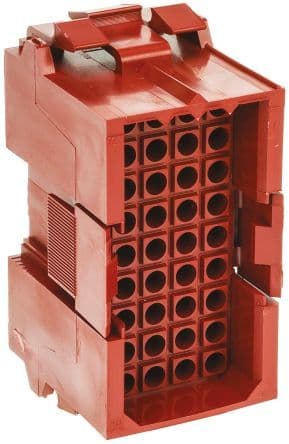

Product Images
