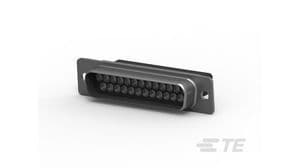

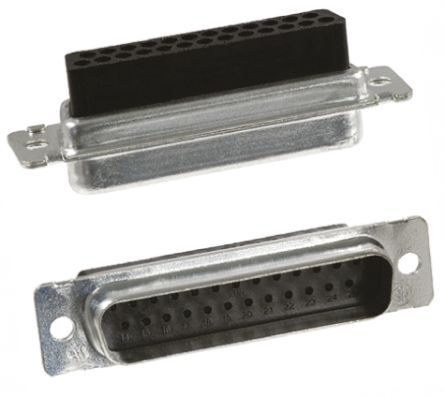

25-position, 2-row straight male D-Subminiature connector for cable mounting. Features shielded, tin-plated signal contacts and a metal body with a black nylon dielectric. Rated for 250V AC, operating from -55°C to 105°C, with UL and CSA approvals and UL94 V-0 flammability. Includes mating connector lock and is RoHS compliant.
Voltage Rating250V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 207464-7 technical specifications.
General
Approvals
UL, CSA
Body Material
Metal
Color
Black
Contact Gender
Male
Contact Type
Signal
Depth
17.8mm
Dielectric Material
Nylon
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Length
53.03mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging
Number of Contacts
25
Number of Positions
25
Number of Rows
2
Orientation
Straight
Package Quantity
400
Packaging
Bulk
Plating
Tin
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
AMPLIMITE HDP-20
Shell Material
Steel
Shell Size
B
Shielding
Shielded
Termination
Crimp
Voltage Rating
250V
Compliance
RoHS
Compliant
