Straight, unshielded cable clamp kit for round wire/cable with a diameter of 16.26mm. Features a thermoplastic body and shell, with a polypropylene material construction. Offers a 10.29mm insulation diameter and a 39.37mm depth, with an overall length of 57.61mm. Rated UL94 V-0 for flammability and is RoHS compliant.
Quick Jump:
Technical Specifications
TE Connectivity 207473-1 technical specifications.
General
| Body Material | Thermoplastic |
| Color | Black |
| Depth | 39.37mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Insulation Diameter | 10.29mm |
| Lead Free | Lead Free |
| Length | 57.61mm |
| Material | Polypropylene |
| Number of Contacts | 37 |
| Number of Positions | 37 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Plastic |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | AMPLIMITE |
| Shell Material | Thermoplastic |
| Shell Size | C |
| Shielding | Unshielded |
| Wire/Cable Diameter | 16.26mm |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 207473-1 Datasheet
Download the complete datasheet for TE Connectivity 207473-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

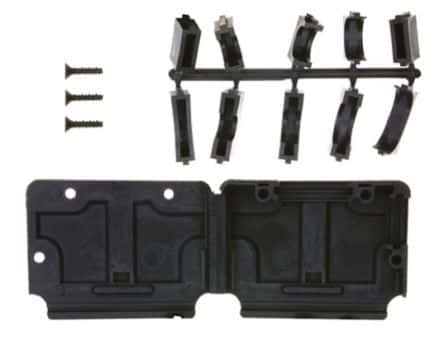

Product Images
