207583-6

Datasheet

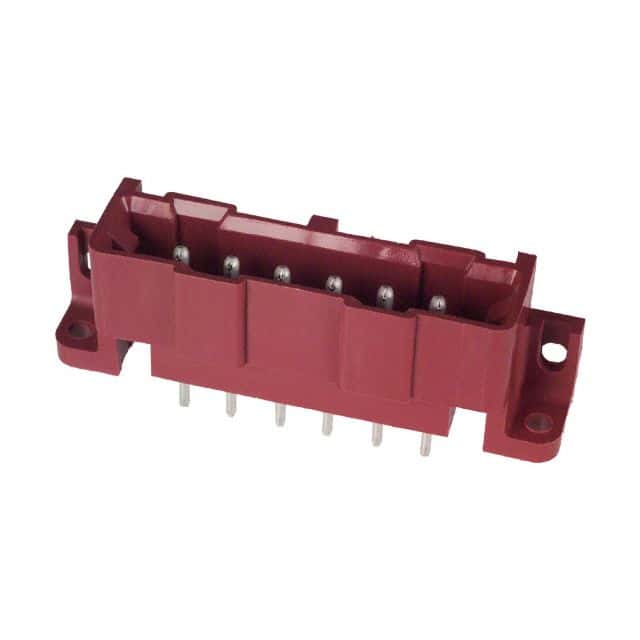

6 Pos Male Pin Header, 14A, 600V, Wire-to-Board, Red

TE Connectivity

207583-6

Name: 207583-6 TE Connectivity
Brand: TE Connectivity
SKU: 207583-6

6 Pos Male Pin Header, 14A, 600V, Wire-to-Board, Red

6-position, 1-row male pin header assembly for wire-to-board applications. Features a 0.197-inch pitch and 7.5A contact current rating, with a 14A overall current rating. Constructed with tin/copper plated copper alloy contacts and a red UL94 V-0 flammability rated housing. Through-hole mount with vertical PCB mounting orientation, designed for solder termination. Rated for 600V AC/DC and operates between -55°C and 130°C.

Voltage Rating600V

Current Rating14A

MountingThrough Hole

Quick Jump:

Chat with Datasheet

Technical Specifications

TE Connectivity 207583-6 technical specifications.

General

Approvals	UL
Color	Red
Connector System	Wire-to-Board
Contact Current Rating	7.5A
Contact Gender	Male
Contact Material	Copper Alloy
Contact Plating	Tin, Copper
Contact Type	Male Pin
Current Rating	14A
Depth	12.7mm
Flammability Rating	UL94 V-0
Height	12.7mm
Housing Color	Red
Length	51.87mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	130°C
Min Operating Temperature	-55°C
Max Voltage Rating (AC)	600V
Max Voltage Rating (DC)	600.6kV
Mount	Through Hole
Number of Contacts	6
Number of Positions	6
Number of Rows	1
Orientation	Straight
Package Quantity	10
Packaging	Rail/Tube
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	0.063inch
Pitch	0.197inch
Radiation Hardening	No
RoHS Compliant	Yes
Series	Metrimate
Tail Length	4.72mm
Termination	Solder
VDE Tested	Yes
Voltage Rating	600V
Width	17.5mm
