Circular PIN connector, 14 positions, straight orientation, wire-to-wire system. Features crimp contact type, thermoplastic body and insulation material, with a zinc alloy metal shell and nickel plating. Rated for 125°C max operating temperature, UL94 V-0 flammability, and is RoHS compliant. Designed for cable mounting with contact protection and mating alignment.
PackageMetal
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 208486-3 technical specifications.
General
| Body Material | Thermoplastic |
| Package/Case | Metal |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Protection | Yes (With) |
| Contact Shape | Circular |
| Contact Type | CRIMP |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Diameter | 0.1inch |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 14 |
| Number of Ports | 1 |
| Number of Positions | 14 |
| Number of Signal Positions | 14 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Box |
| Plating | Nickel, ZINC ALLOY |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | CMC Series 1 |
| Shell Finish | Nickel |
| Shell Material | ZINC ALLOY |
| Shell Size | 22 |
| Shielding | Shielded |
| Strain Relief | No (Without) |
| Termination | Crimp |
| VDE Tested | No |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 208486-3 Datasheet
Download the complete datasheet for TE Connectivity 208486-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

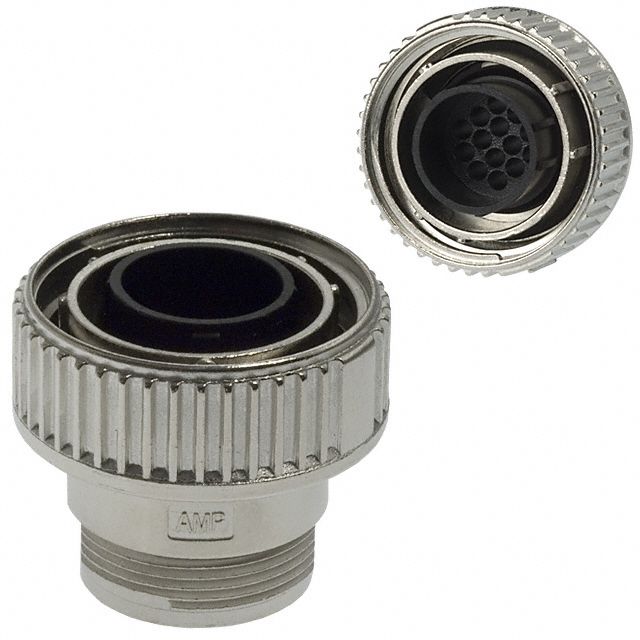

Product Images
