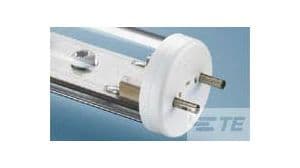

Straight connector accessory, G13 Style, featuring a PBT body material and natural housing color. Designed for 2-position applications with SMD/SMT termination, it offers a 2A current rating and 250V AC voltage rating. Operating temperature range spans from -40°C to 248°C, with UL94 V-0 flammability rating and CSA approval.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 2106646-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 2106646-1 technical specifications.
| Approvals | CSA |
| Body Material | PBT, Polybutylene |
| Color | Natural |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 2A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 25.75mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 250V |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 300 |
| Packaging | Loose Piece |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Sealable | No (Without) |
| Series | G13 Style |
| Termination | SMD/SMT |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Width | 1.014inch |
| RoHS | Compliant |
