9-position, male pin receptacle for panel mount applications. Features a straight, thermoplastic body in black, rated IP65 and UL94 V-0 flammability. This circular connector supports a 600V operating supply voltage and operates within a temperature range of -55°C to 125°C. Includes contact protection and mating alignment/retention.
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 211767-1 technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Thermoplastic
Color
Black
Contact Gender
Male
Contact Protection
Yes (With)
Contact Style
Pin
Contact Type
CRIMP
Depth
36.45mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
36.45mm
Housing Color
Black
Insulation Diameter
3.81mm
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
34.29mm
Material
Plastic
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Panel
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Signal Positions
9
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Plating
Thermoplastic
Radiation Hardening
No
Ratings
IP65
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CPC Series 1
Shell Size
17
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
Yes
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 211767-1 Datasheet
Download the complete datasheet for TE Connectivity 211767-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

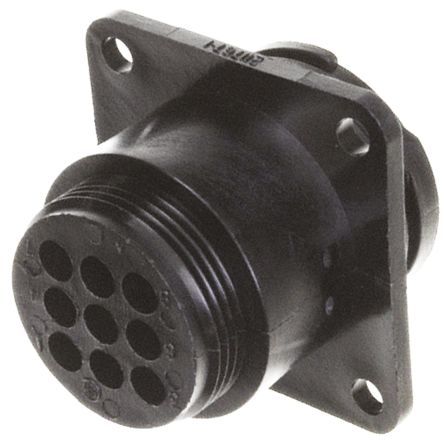

Product Images
