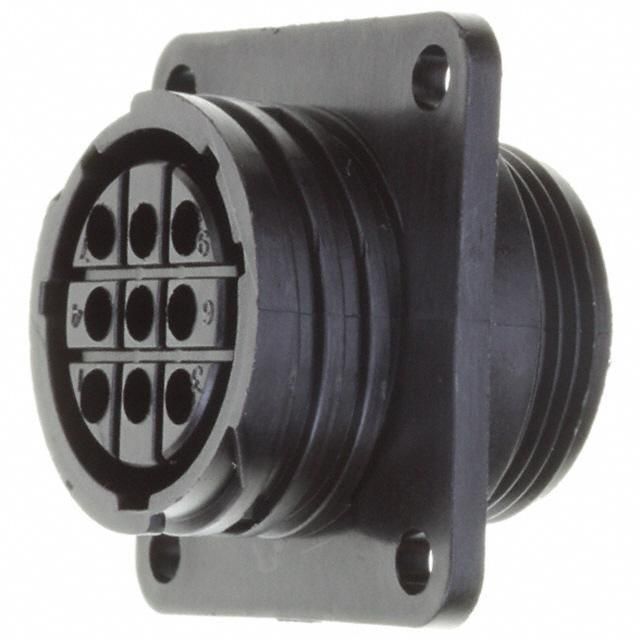

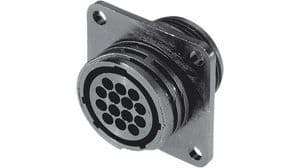

9-position, straight receptacle circular connector with female crimp contacts. Features a thermoplastic body and shell, black housing, and UL94 V-0 flammability rating. Rated for 250V AC and 600V operating supply voltage, with IP65 sealing. Includes mating alignment and retention, with a panel mount design.
Voltage Rating250V
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 211769-1 technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Thermoplastic
Color
Black
Contact Gender
Female
Contact Protection
Yes (With)
Contact Shape
Circular
Contact Type
CRIMP
Depth
36.45mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
36.45mm
Housing Color
Black
Insulation Diameter
3.81mm
Insulation Material
Thermoplastic
Lead Free
Lead Free
Length
27.18mm
Material
Plastic
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Mount
Panel
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Signal Positions
9
Operating Supply Voltage
600V
Orientation
Straight
Package Quantity
1
Packaging
Bulk
PCB Mount Retention
Without
Plating
Thermoplastic
Radiation Hardening
No
Ratings
IP65
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
CPC Series 1
Shell Material
Thermoplastic
Shell Size
17
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
Yes
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 211769-1 Datasheet
Download the complete datasheet for TE Connectivity 211769-1 to view detailed technical specifications.
