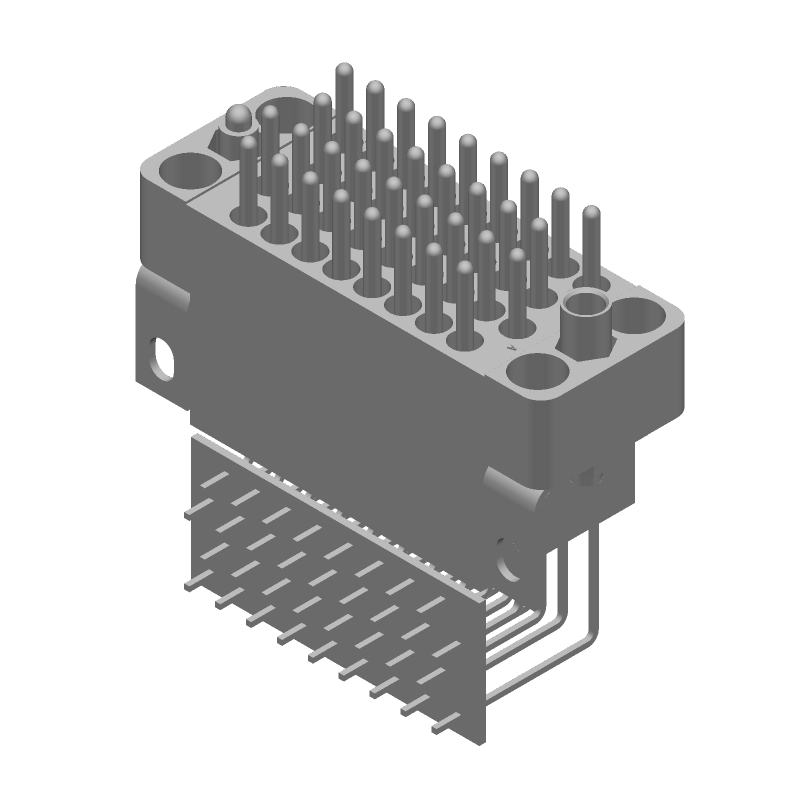

Right angle, 34-position, 4-row shrouded header for signal applications. Features brass contacts with tin plating, through-hole mounting, and panel mount capability. Operates within a temperature range of -55°C to 150°C, with UL94 V-0 flammability rating and RoHS compliance. Connector system is cable-to-board with solder termination.
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
TE Connectivity 213289-2 technical specifications.
General
| Circuit Application | Signal |
| Color | Black |
| Connector System | Cable-to-Board |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Retention | Yes (With) |
| Depth | 39.75mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 19.05mm |
| Housing Color | Black |
| Length | 2inch |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Panel |
| Number of Contacts | 34 |
| Number of Positions | 34 |
| Number of Rows | 4 |
| Orientation | Right Angle |
| Package Quantity | 12 |
| Packaging | Tray |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| Pitch | 0.15inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | M |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Solder |
| Width | 23.24mm |
Compliance
| RoHS | Compliant |
