14-position, female wire-to-wire connector housing, featuring a straight orientation and black nylon/polyamide construction. This crimp contact type connector system supports a 600V operating supply voltage and includes mating alignment and retention features. Designed for free hanging or cable mounting, it is RoHS compliant and UL/CSA approved.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 213652-1 technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Nylon, Polyamide |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Protection | Yes (With) |
| Contact Type | CRIMP |
| ELV | Compliant |
| Gender | Female |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 41.66mm |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Mount | Free Hanging, Cable |
| Number of Contacts | 14 |
| Number of Ports | 1 |
| Number of Positions | 14 |
| Number of Signal Positions | 14 |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | MIL-C-5015 |
| Shell Size | 20 |
| Strain Relief | No (Without) |
| Termination | Crimp |
| VDE Tested | No |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 213652-1 Datasheet
Download the complete datasheet for TE Connectivity 213652-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

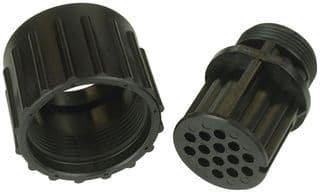

Product Images
