215309-4

Datasheet

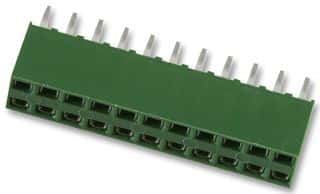

4 Pos 2.54mm Socket Header, Straight, Thru-Hole, 3A, Gold

TE Connectivity

215309-4

Name: 215309-4 TE Connectivity
Brand: TE Connectivity
SKU: 215309-4

4 Pos 2.54mm Socket Header, Straight, Thru-Hole, 3A, Gold

Straight, 2-row, 4-position female socket header for board-to-board applications. Features a 2.54mm lead pitch and 3.1mm contact post length with gold plating for mating and gold/tin plating on bronze contacts. Rated for 3A contact current and operates within a -65°C to 125°C temperature range. The green, glass-filled insulation material and black housing are UL94 V-0 flammability rated. This stackable, through-hole component is RoHS compliant and designed for vertical PCB mounting.

MountingThrough Hole

Quick Jump:

Chat with Datasheet

Technical Specifications

TE Connectivity 215309-4 technical specifications.

General

Boss	No (Without)
Color	Green
Contact Current Rating	3A
Contact Finish - Mating	GOLD
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	3.1mm
Contact Shape	Square
Contact Type	Female Socket
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	8.5mm
Housing Color	Black
Insulation Color	Green
Insulation Material	Glass
Lead Pitch	2.54mm
Max Operating Temperature	125°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	8
Number of Positions	4
Number of Rows	2
Orientation	Straight
Package Quantity	184
Packaging	Carton
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	1.6mm
Pitch	2.54mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.1inch
Sealable	No (Without)
Series	AMPMODU HV-100
Stackable	Yes
Tail Length	3.1mm
Termination	Solder
