96-position, 3-row male header for board-to-board connectivity. Features a 2.54mm pitch and right-angle mounting with press-fit termination. Rated for 1.5A contact current, with gold-plated bronze contacts and a polyester insulation material. Operates across a -55°C to 125°C temperature range and offers 400 mating cycles. Compliant with DIN and IEC standards, and UL94 V-0 flammability rating.
MountingThrough Hole, Board
Quick Jump:
Technical Specifications
TE Connectivity 215605-4 technical specifications.
General
| Circuit Application | Signal |
| Connector System | Board-to-Board |
| Contact Current Rating | 1.5A |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 17.72mm |
| DIN Conformance | Yes |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Grey |
| IEC Conformance | Yes |
| Insulation Material | Polyester |
| Lead Free | Lead Free |
| Length | 93.7mm |
| Manufacturer Series | 215605 |
| Mating Cycles | 400 |
| Max Operating Temperature | 125°C |
| MIL Conformance | No |
| Min Operating Temperature | -55°C |
| Mixed Contacts | No |
| Mount | Through Hole, Board |
| Mounting Style | RIGHT ANGLE |
| Number of Columns | 32 |
| Number of Contacts | 96 |
| Number of Positions | 96 |
| Number of Rows | 3 |
| Number of Rows Loaded | 3 |
| Option | General Purpose |
| Orientation | Right Angle |
| Package Quantity | 26 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Sealable | No (Without) |
| Series | Eurocard |
| Termination | Press-Fit |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 215605-4 Datasheet
Download the complete datasheet for TE Connectivity 215605-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

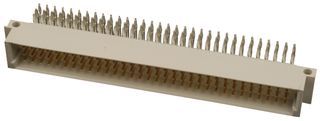

Product Images
