Straight SMA female to female bulkhead adapter featuring a 50 Ohm impedance and a maximum frequency of 18GHz. Constructed with a stainless steel body plated in nickel and a PTFE dielectric. Center contact and contact material are gold-plated copper, offering 500 mating cycles. Designed for panel mounting with a 2.62mm panel thickness capability.
Frequency18GHz
PackageSMA
MountingPanel, Bulkhead
PolarityNormal
Quick Jump:
Technical Specifications
TE Connectivity 221643-1 technical specifications.
General
| Body Material | Stainless Steel |
| Body Plating | Nickel |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 9.53mm |
| Dielectric Material | PTFE |
| ELV | Compliant |
| Gender Type A | Female |
| Gender Type B | Female |
| Impedance | 50R |
| Insulation Material | Polytetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 0.88inch |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Mount | Panel, Bulkhead |
| Operating Frequency | N/A |
| Orientation | Straight |
| Packaging | Bulk |
| Panel Thickness | 2.62mm |
| Plating | Passivated |
| Polarity | Normal |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 221643-1 Datasheet
Download the complete datasheet for TE Connectivity 221643-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

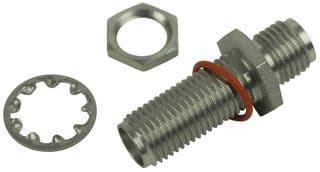

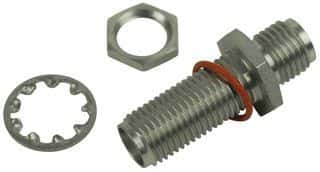

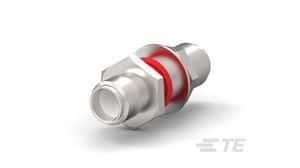

Product Images
