Right-angle, male RF coaxial connector with a bayonet coupling mechanism. Features a 50 Ohm impedance, gold-plated bronze center contact, and PBT/Polybutylene/Zinc body with nickel plating. Designed for through-hole PCB mounting with a solder termination. Operates within a temperature range of -55°C to 85°C and has a voltage rating of 500V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 228686-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

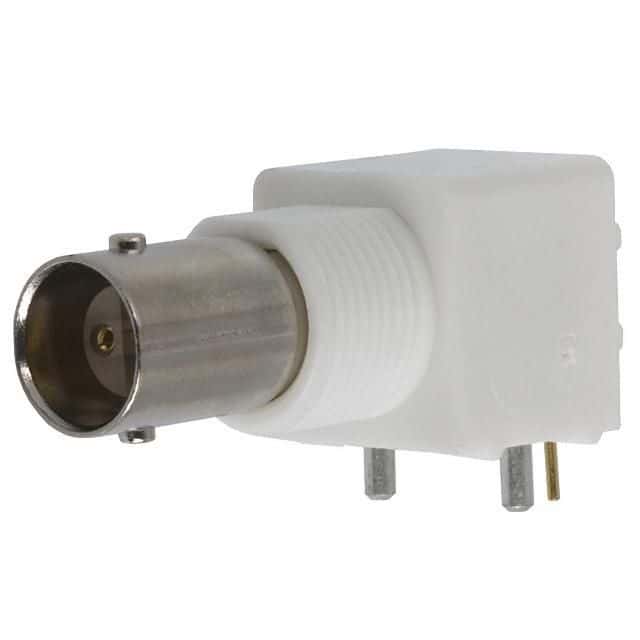

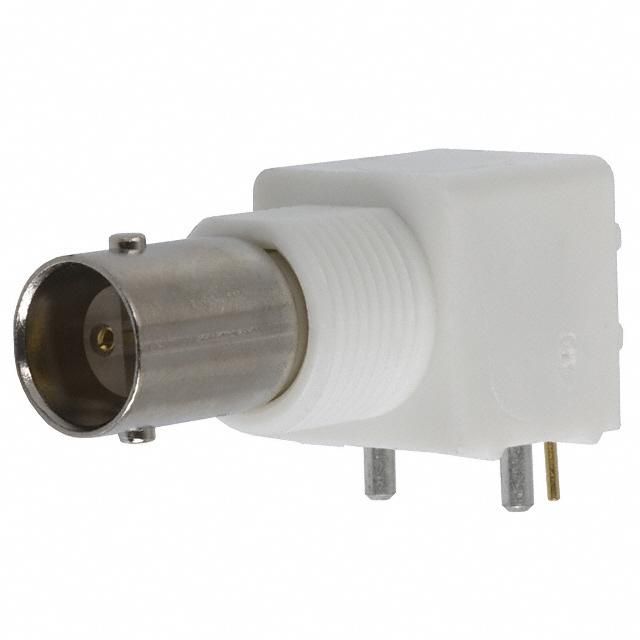

TE Connectivity 228686-1 technical specifications.
| Body Material | PBT, Polybutylene, Zinc |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Color | Yellow |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Coupling Type | Bayonet |
| Depth | 14.76mm |
| Dielectric Material | Polymethylpentene |
| ELV | Compliant |
| Forward Current | 25mA |
| Gender | Male |
| Housing Color | White |
| Insulation Material | Polymethylpentene |
| Lead Free | Contains Lead |
| Length | 36.83mm |
| Manufacturer Series | 228686 |
| Mating Cycles | 200 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Ports | 1 |
| Operating Frequency | N/A |
| Orientation | Right Angle |
| Package Quantity | 35 |
| Packaging | Bulk |
| PCB Mounting Orientation | Right Angle |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Coaxicon |
| Shape | Rectangular |
| Termination | Solder |
| Voltage Rating | 500V |
| RoHS | Compliant |
Download the complete datasheet for TE Connectivity 228686-1 to view detailed technical specifications.
