This 4-pin female connector features a current rating of 10A and is designed for through hole mounting. It is compliant with ROHS regulations and is available in packs of 100. The connector's body is made of polyester, with brass contacts that are plated with tin. The connector is not lead-free, but is compliant with ELV standards.
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 27E629 technical specifications.
General
| Body Material | Polyester |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 10A |
| ELV | Compliant |
| Gender | Female |
| Lead Free | Contains Lead |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Number of Positions | 16 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | R10 |
| Termination | PC Pin |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 27E629 Datasheet
Download the complete datasheet for TE Connectivity 27E629 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

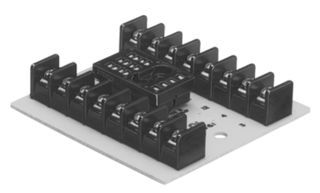

Product Images
