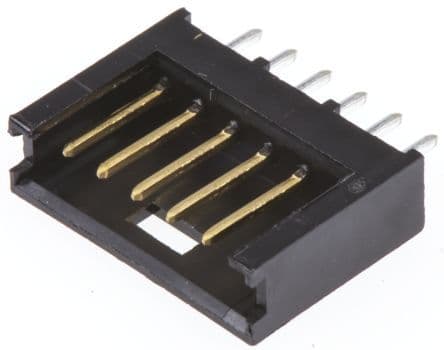

6 Position, 1 Row, 2.54mm Pitch Wire-to-Board Header. Features straight, through-hole mounting with a vertical PCB mounting orientation. Male pin contacts are brass with gold and tin plating, offering 3A current rating and 40V voltage rating. Housing is black thermoplastic with a UL94 V-0 flammability rating. Includes mating alignment and mating connector lock.
Voltage Rating40V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 280372-2 technical specifications.
General
Approvals
CSA
Board Standoff
No (Without)
Color
Black
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.26inch
Contact Plating
Gold, Tin
Contact Post Length
0.138inch
Contact Protection
Yes (With)
Contact Shape
Round
Contact Style
Pin
Contact Type
Male Pin
Current Rating
3A
Depth
5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
High Speed Serial Data Connector
No
High Temperature Housing
No
Housing Color
Black
Insulation Color
Black
Insulation Material
Thermoplastic
Keyed
No
Lead Free
Lead Free
Lead Length
3.5052mm
Lead Pitch
2.54mm
Length
17.8mm
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
6
Number of Positions
6
Number of Rows
1
Orientation
Straight
Package Quantity
1000
Packaging
Box
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Plating Thickness
2.5um
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Shrouded End Dimension
1.65mm
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Voltage Rating
40V
Compliance
RoHS
Compliant
