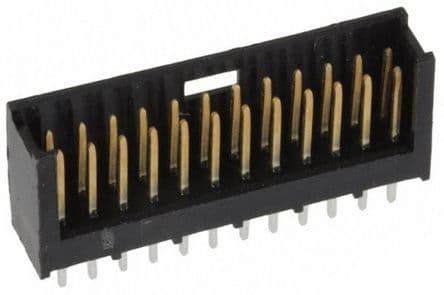

24-position, 2-row wire-to-board header with 2.54mm pitch. Features male pin contacts made of brass with gold and tin plating, offering a 3A current rating and 40V voltage rating. Straight, through-hole mounting with a thermoplastic housing in black. Compliant with CSA and RoHS standards, operating between -65°C and 105°C.
Voltage Rating40V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 280521-2 technical specifications.
General
Approvals
CSA
Board Standoff
No (Without)
Color
Black
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.26inch
Contact Plating
Gold, Tin
Contact Post Length
0.138inch
Contact Protection
Yes (With)
Contact Shape
Round
Contact Style
Pin
Contact Type
Male Pin
Current Rating
3A
Depth
7mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
High Speed Serial Data Connector
No
High Temperature Housing
No
Housing Color
Black
Insulation Color
Black
Insulation Material
Thermoplastic
Keyed
No
Lead Free
Lead Free
Lead Length
3.5052mm
Length
33.1mm
Material
Thermoplastic
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
24
Number of Positions
24
Number of Rows
2
Orientation
Straight
Package Quantity
400
Packaging
Box
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Plating Thickness
2.5um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Shrouded End Dimension
1.65mm
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Voltage Rating
40V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 280521-2 Datasheet
Download the complete datasheet for TE Connectivity 280521-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
