8 Pos 3.96mm RA Shrouded Header HDR, Male Pin, Tin, 5A

TE Connectivity

280618-1

Name: 280618-1 TE Connectivity
Brand: TE Connectivity
SKU: 280618-1

8 Pos 3.96mm RA Shrouded Header HDR, Male Pin, Tin, 5A

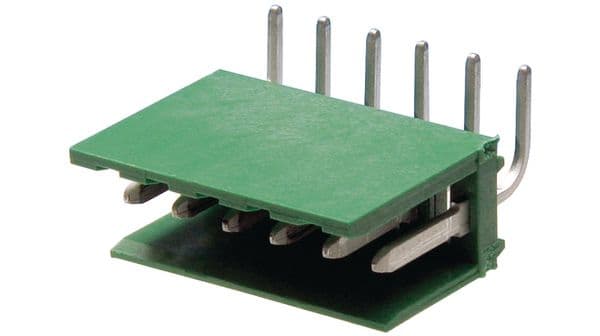

Right-angle shrouded header with 8 positions and 1 row, featuring a 3.96mm lead pitch. This male pin connector is constructed with bronze contacts and tin plating, offering a 5A current rating and a contact mating length of 10mm. The green glass-filled housing ensures a UL94 V-0 flammability rating and operates within a -65°C to 105°C temperature range. It is designed for through-hole termination and includes mating alignment.

PackageSIL

Current Rating5A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 280618-1 technical specifications.

General

Approvals	CSA
Board Standoff	No (Without)
Package/Case	SIL
Color	Green
Contact Finish - Mating	TIN
Contact Gender	Male
Contact Material	Bronze
Contact Mating Length	10mm
Contact Plating	Tin
Contact Post Length	3.3mm
Contact Protection	Yes (With)
Contact Shape	Square
Contact Type	Male Pin
Current Rating	5A
ELV	Compliant
Flammability Rating	UL94 V-0
Gasket	No (Without)
Gender	Male
Housing Color	Green
Insulation Color	Green
Insulation Material	Glass
Keyed	No
Lead Pitch	3.96mm
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	8
Number of Positions	8
Number of Rows	1
Orientation	Right Angle
Package Quantity	250
Packaging	Carton
PCB Mount Retention	Without
PCB Mounting Orientation	Right Angle
Pitch	0.156inch
Radiation Hardening	No
RoHS Compliant	Yes
Selectively Loaded	No (Without)
Series	AMPMODU MOD I
Shrouded End Dimension	0.045inch
Stabilizers	No (Without)
Strain Relief	No (Without)
Termination	Through Hole
